Capabilities
HQ Industries machining is precise to meet the demanding requirements and specifications. Our end product has the highest level of quality, accuracy and efficiency.
HQ Industries 22,000 square foot facility houses 16 CNC turning centers. Capabilities range from 17" to 28" maximum turning diameters and up to 80" maximum turning lengths. We also house 4 CNC Vertical machining centers, maximum capacity 84"x 40" x 30" with 5 axis. Along with our CNC centers we also have conventional machines, electrical discharge machines, bandsaws and measuring equipment.

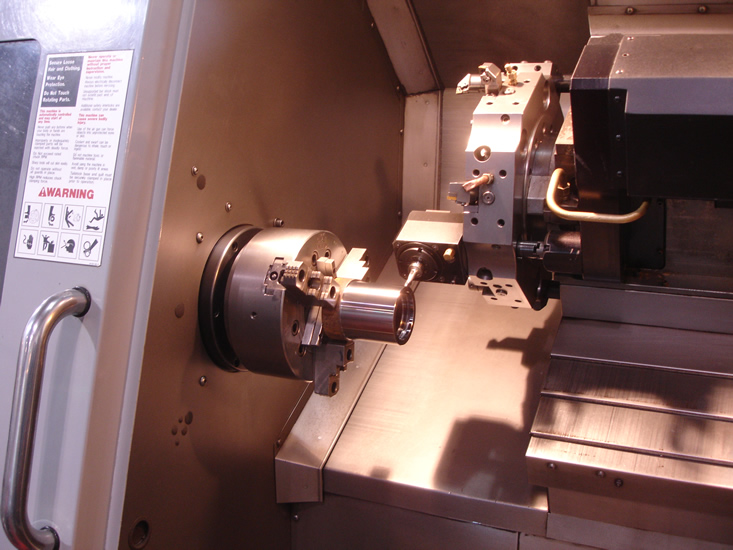

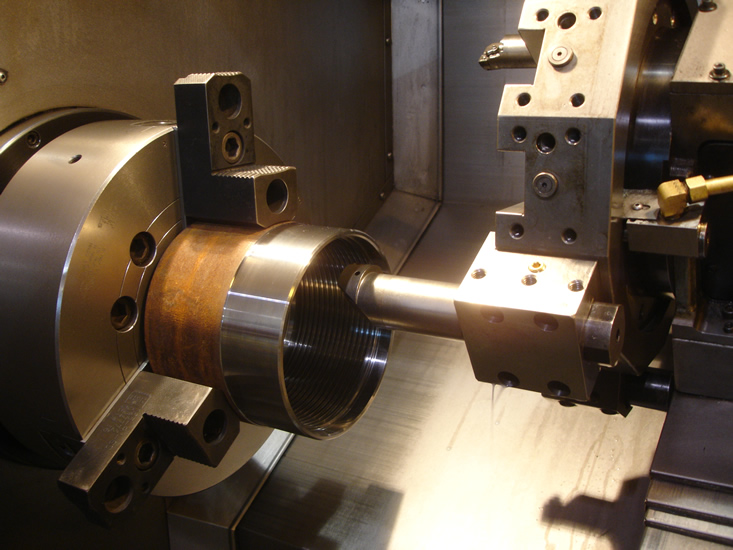

CNC Turning Centers
SL20 |

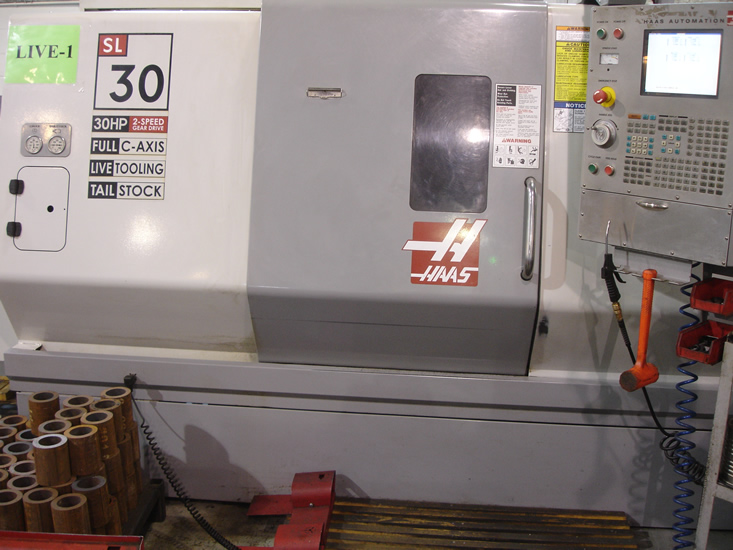

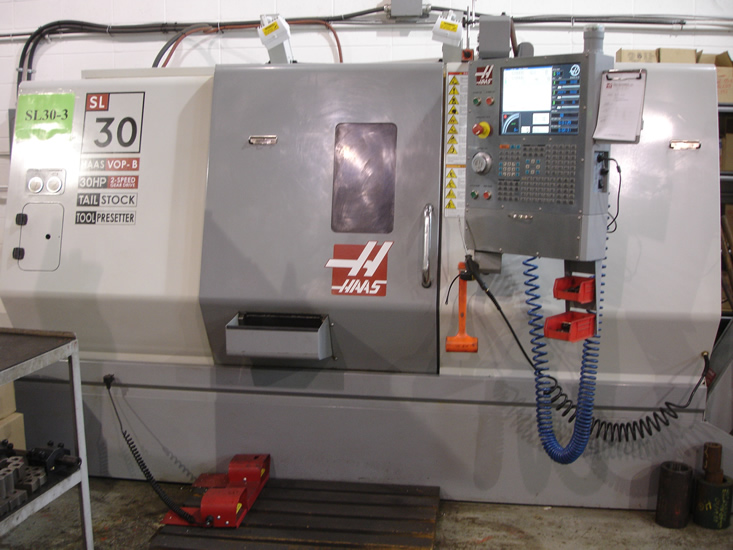

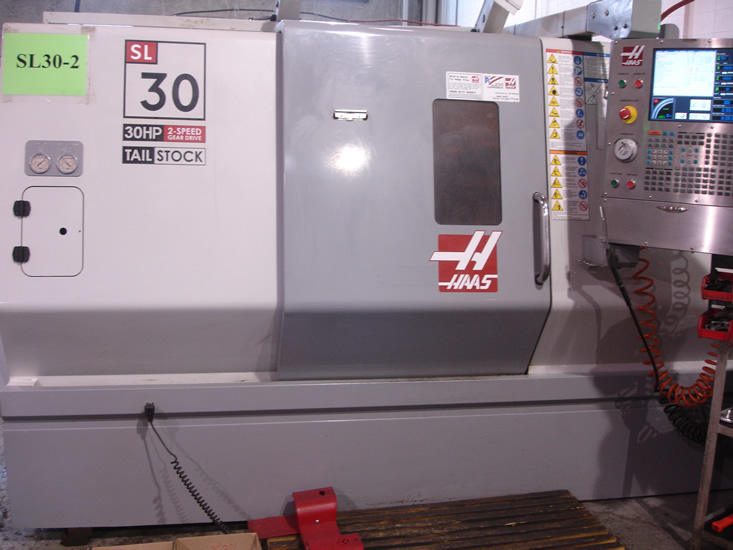

SL30 |
ST40 |
ST40L |
||||
| Chuck Size: | 8" | Chuck Size: | 10" with Live Tool | Chuck Size: | 15" | Chuck Size: | 15" |
| Capacity: | 10" x 24" | Capacity: | 17" x 34" | Capacity: | 25.5" x 44" | Capacity: | 25.5" x 80" |
| Bar Capacity: | 2.00" | Bar Capacity: | 3.00" | Bar Capacity: | 4.00" | Bar Capacity: | 4.00" |
| Spindle Motor: | 20 HP | Spindle Motor: | 30 HP | Spindle Motor: | 40 HP | Spindle Motor: | 40 HP |
| 4 Machines | 3 Machines | 2 Machines | |||||

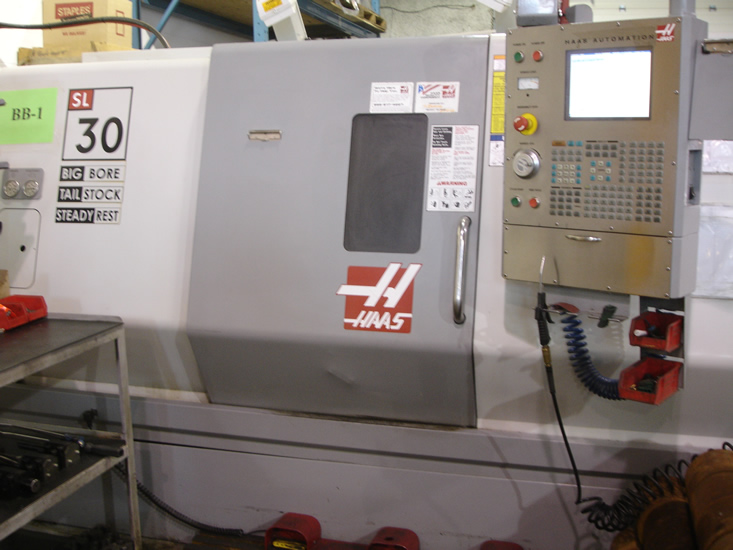

SL30BB |
SL40BB |
SL65 |
LB45-II |
||||
| Chuck Size: | 15" | Chuck Size: | 18" | Chuck Size: | 24" | Chuck Size: | 24" |
| Capacity: | 17" x 34" | Capacity: | 25.5" x 44" | Capacity: | 35.5" x 126" | Capacity: | 26" x 80" |
| Bar Capacity: | 4.00" | Bar Capacity: | 7.00" | Bar Capacity: | 5.50" | Bar Capacity: | 10.25" |
| Spindle Motor: | 40 HP | Spindle Motor: | 55 HP | Spindle Motor: | 55 HP | Spindle Motor: | 60 HP |
| 2 Machines | 2 Machines | 3 Machines | |||||
PUMA 300L |
|
|
|
||||
| Chuck Size: | 12" | ||||||
| Capacity: | 16" x 50" | ||||||
| Bar Capacity: | 3.00" | ||||||
| Spindle Motor: | 40 HP | ||||||
CNC Vertical Machining Centers |
|||||||
VF-6 |

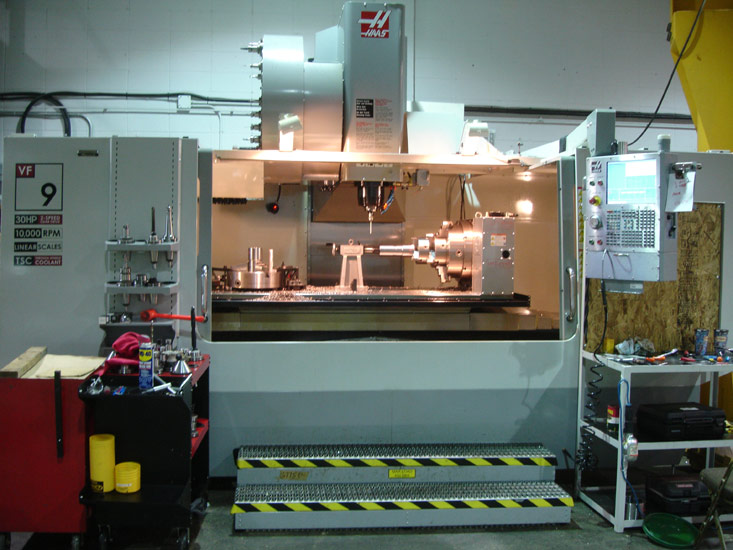

VF-9 |
Mini-Mill |
ROKU-ROKU HC658 II |
||||
| Capacity: | 66" x 32" x 30" | Capacity: | 84" x 40" x 30" | Capacity: | 16" x 12" x 10" | Capacity: | 24" X 20" X 16" |
| With 4th Axis | With 4th and 5th Axis | With 4th Axis | 32,000 RPM Spindle | ||||
| 2 Machines | Graphite & Hard Milling | ||||||
CNC 5 Axis Machining Centers |
|||||||
MATSUURA MX-520 |
MATSUURA MAM72 |
DMU 50 |
YCM TCV3000A |
||||
| Capacity: | 25" x 22" x 20" | Capacity: | 30" x 33" x 25" | Capacity: | 20" x 18" x 16" | Capacity: | 118" X 32" X 32" |
| With 5th Axis | 5th Axis w/Pallet Changer | With 5th Axis | 15K Spindle with 5th Axis | ||||
Conventional Machines |
|||||||
Engine Lathe |
Vert. Milling Machine |
JAFO UNIVERSAL MILLING MACHINE |
|||||
| Capacity: | 21" x 60" | Capacity: | 10" x 50" Table | Capacity: | 13" X 50" Table | ||
| Bar Capacity: | 2.00" | ||||||
Electrical Discharge Machines |
|||||||
MITSUBISHI MV2400S WIRE EDM |
MITSUBISHI EA28VM SINKER EDM |
||||||
| Capacity: | 24" X 16" X 17" | Capacity: | 26" X 18" X 14" | ||||
| With 5 Axis | Tool Changer C Axis and Rotary Axis |
||||||

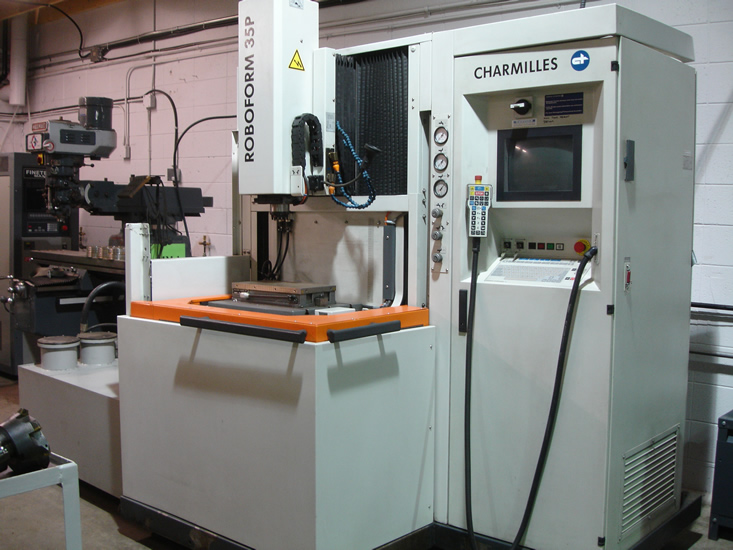

Charmilles Roboform 35P CNC Diesinker |

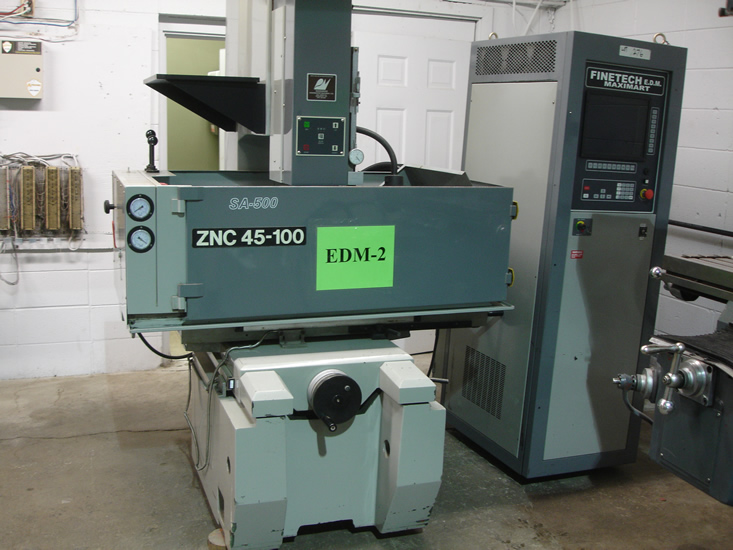

ZNC 45/100 RAM EDM |
||||||
| Capacity: | 14" X 10" X 12" | Capacity: | 16" X 32" Table | ||||
MAXIMART V25-E50 RAM EDM |
|
||||||
| Capacity: | 12" X 24" TABLE | ||||||
Bandsaws |
|||||||
KC-226-2 Bandsaw |
H-10A Automatic
|
||||||
| Capacity: | 10" Round | Capacity: | 10" Diameter Round | ||||
H-14A Automatic Horizontal Bandsaw |
|||||||
| Capacity: | 14" Diameter Round | ||||||
Inspection Equipment |
|||||||
ZEISS CONTURA G2 |
Mitutoyo B706 |
||||||
| Capacity: | 28" X 40" X 24" | Capacity: | 28" X 24" X 24" | ||||
Mitutoyo LH-600 Linear Height Gauge |
|||||||
SPERONI STP MAGIS 400 TOOL PRESETTER |
|||||||
MARKING/STAMPING EQUIPMENT |
|||||||
TRUMPF TRUMARK 3020-5000 LASER MARKER |
|||||||
| Capacity: | 27" X 28" X 20" | ||||||
SIC e8 P122 DOT MATRIX MARKING MACHINE |
|||||||
